Installing the backrest covering

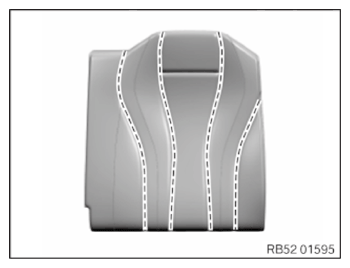

• Position the backrest cover on the cushion.
• Secure all trim wires with clamps.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the clamps (2).

  Parts:  Clamps

• Insert the clamp (2) with the special tool  0 492 668 (52 0 050)  .
• Clasp the trim wire (3) of the cushion (1) and the trim wire (4) of the backrest covering with the clamp (2) and bend the clamp (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

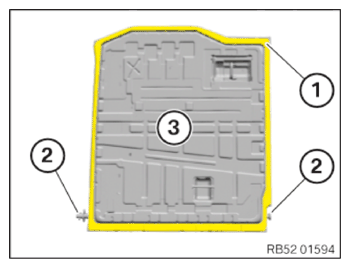

• Position the backrest covering (1) correctly on the backrest frame (3) and lock and connect plug connections as necessary.
• Carefully pull the backrest covering (1) over the attachment points of the backrest frame (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

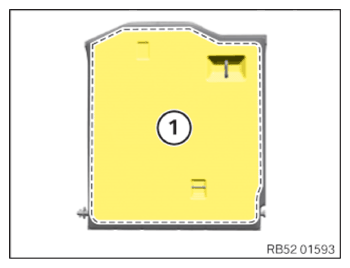

• Position the rear panel (1) correctly.
• Clip in the edge stripping of the backrest covering in the marked area.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to REMOVING REAR SEAT BACKREST .
• Refer to INSTALLING THE REAR SEAT .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
