Seats -- Repair (G14, G15, & G16)
>>
52 19 Front Seats, Sport Version
>>
52 19 381 Removing and installing/replacing emblem in head restraint on the left or right (M sport seal)
>>
Installing the emblem in the head restraint
Installing the emblem in the head restraint

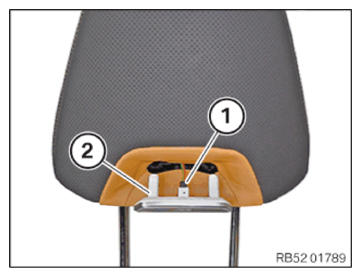

Position emblem (2) as illustrated.
Connect plug connection (1) and lock.
Courtesy of BMW OF NORTH AMERICA, INC.

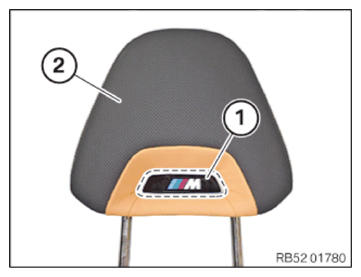

Install emblem (1) in the marked area in the head restraint (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
