Installing the 3rd brake light

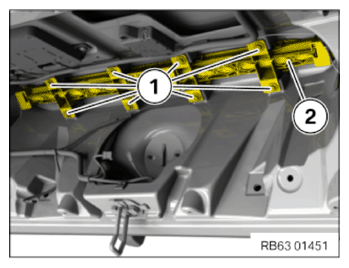

• Position the 3rd brake light and (2) tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  3. Brake light to trunk lid
  Hexagon screw for thermoplastic	tightening torque	3.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

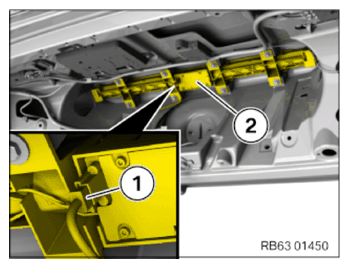

• Connect and lock the connector (1) with the 3rd brake light (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to INSTALLING THE POWER TAILGATE SWITCH .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
