Removing the LED module in the front storage compartment

Preliminary work

• Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
• Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to REMOVING CENTER ARMREST .
• Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .
• Refer to REMOVING CENTRAL INFORMATION DISPLAY (CID) .
• Refer to REMOVING CUP HOLDER .
• Refer to REMOVING THE WIRELESS CHARGING STORAGE .
• Refer to REMOVING THE CENTER STACK MODULE .

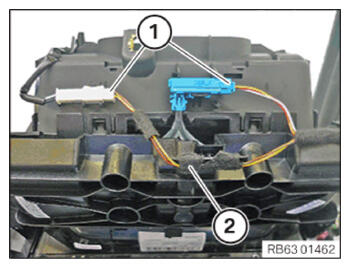

• Disconnect the connector (1).
• Unclip the cable clip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

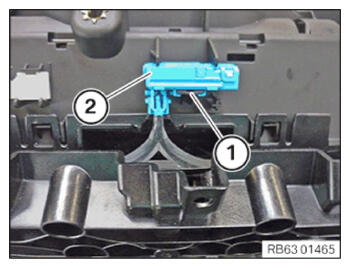

• Release detent (1).
• Remove the LED module with fiber optic cable (2) from the detent (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

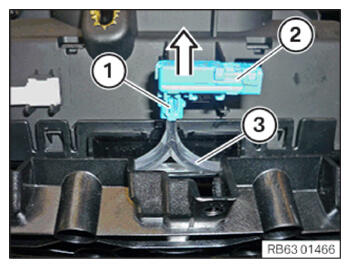

• Release the detents (1) on the LED module (2) on both sides.
• Remove the LED module (2) from the fiber optic cable (3) in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.
