Remounting LED module for daytime driving lights

Remove the LED module for the daytime running lights

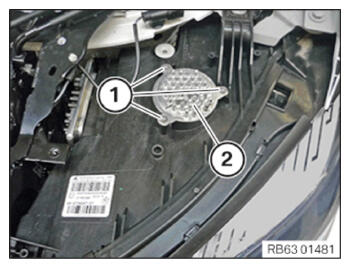

• Loosen screws (1).
• Pull LED module (2) out of headlight.

  Courtesy of BMW OF NORTH AMERICA, INC.

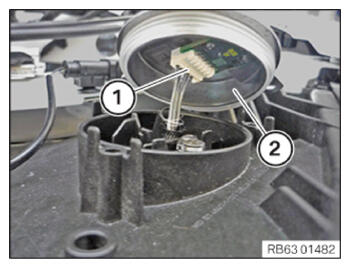

• Unlock connector (1) at LED module (2) and disconnect it.
• Remove the LED module (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Install the LED module for the daytime running lights

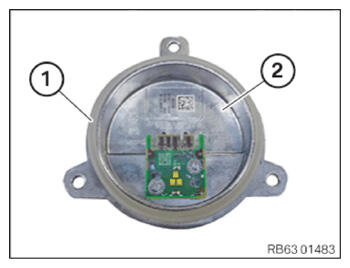

• Check the seal (1) on the LED module (2) for damage and replace as needed,

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connector (1) to LED module (2),

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the LED module (2) in the headlight,
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  LED module of daytime running lights
  Screw	tightening torque	1.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
