Removing the rear wheel arch cover
NOTE:

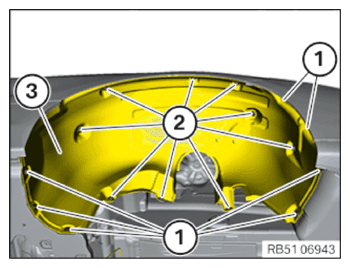

To provide a better overview: Schematic diagram with partially hidden components.
- Insert rear wheel arch cover (3).
- Tighten the bolts (1) and nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover | ||
|---|---|---|
| Thermoplastic hexagon screw | Tightening torque | 2.6 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
Follow-up work
- Refer to INSTALLING REAR LEFT OR RIGHT WHEEL .
