Checking the expanding foam tapes for damage

Check

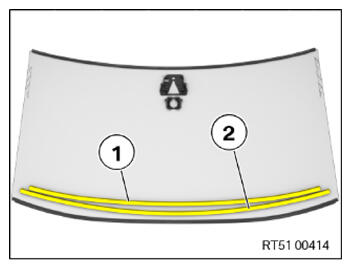

• Check expanding foam tape (1)  and (2)  for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

The expanding foam tapes are damaged.

Measure

• Replace expanding foam tapes (1)  and (2)  .

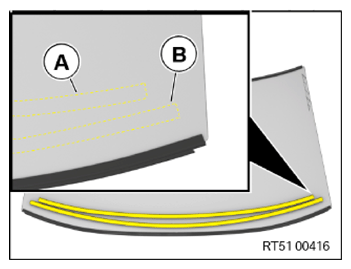

• Observe marks (A)  and (B)  for the expanding foam tape on the windshield.
• Remove adhesive residue.
• Clean adhesive areas (A)  and (B)  .
  CONSUMABLE SPECIFICATION



  Cleaning agent R2

  500 ml

  83190417324

• Glue the expanding foam tape on the windshield as shown.

Courtesy of BMW OF NORTH AMERICA, INC.
