Remove the tension spring for the trunk lid on the left
Preliminary work
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
CAUTION:
Shutting hood or trunk lid
.
Injury hazard!
Injury hazard!
- Support hood/trunk lid in fully open position with the aid of a suitable device.
NOTE:
TECHNICAL INFORMATION
The notes on the disassembly and installation of ball sockets with clamps are the basis for these repair instructions and must be observed without fail.
For additional information see: REMOVING/INSTALLING BALL SOCKETS WITH CLIP .
The notes on the disassembly and installation of ball sockets with clamps are the basis for these repair instructions and must be observed without fail.
For additional information see: REMOVING/INSTALLING BALL SOCKETS WITH CLIP .

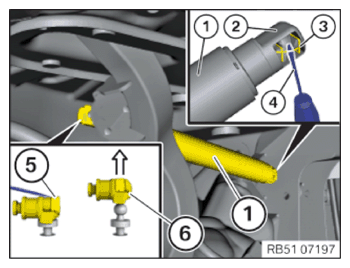

- First, uninstall the ball socket on the trunk lid, then the ball socket on the body.
- Push on clamp (5) in direction of groove with a screwdriver.
- Lift the ball socket (6) off of the ball hub.
- Push the clamp (5) back into the initial position.
- Slightly raise the retaining spring (3) with a small screwdriver (4) as shown and lift the spindle drive (2) away from the ball hub.
- Remove tension spring (1).
