Topping up the motor oil

NOTE: RISK OF DAMAGE
Engine damage caused by excessively filling the engine with motor oil .
Filling an excessive quantity of motor oil may cause engine damage .

Observe the exact motor oil filling capacity.
Allow engine oil to drip off when draining.

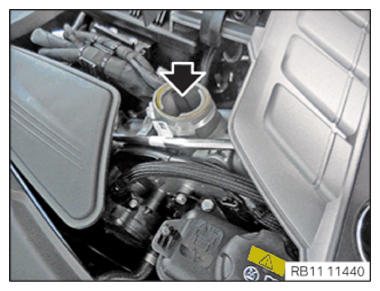

Fill motor oil through oil filler neck (arrow).

TECHNICAL DATA SPECIFICATION

Engine oil
	Filling capacity, motor oil change with oil filter element	12.0 l

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to CLOSING THE OIL FILLER CAP .
Refer to FOLDING THE ACOUSTIC COVER CLOSED .
