Installing both right VANOS adjusters

Check the camshaft positions of cylinder bank 1.
The cams (1) should be in the position shown.

The increment wheels (2) should each form a straight line with the exhaust camshaft bearing cap and the intake camshaft bearing cap.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for right component only. The procedure on the left side is identical.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Ensure that the polished surfaces of the camshafts (1) point upward.

Courtesy of BMW OF NORTH AMERICA, INC.
Ensure that the rounded surfaces (1) are pointing down at the cylinder head.
Check timing again and assess.

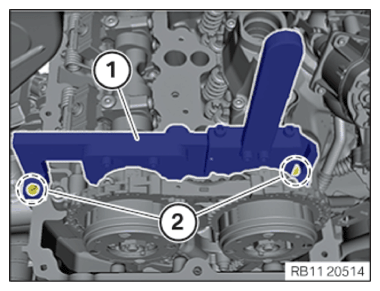

Position special tool 2 249 117 (1) on the camshafts of cylinder bank 1.
Secure camshafts with the special tool 2 249 117 (1) .
Manually tighten special tool 2 249 117 using two of the cylinder head cover screws (2) until it is against the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

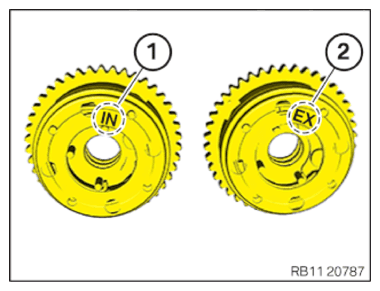

Always check the installation position of the VANOS adjusters.
IN is the intake camshaft adjuster (1) .

EX is the exhaust camshaft adjuster (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

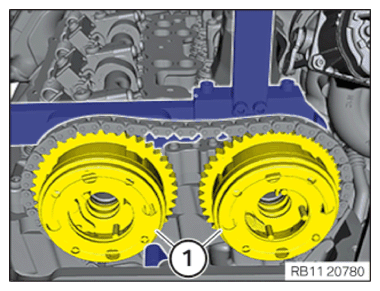

Insert and position the VANOS adjusters (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

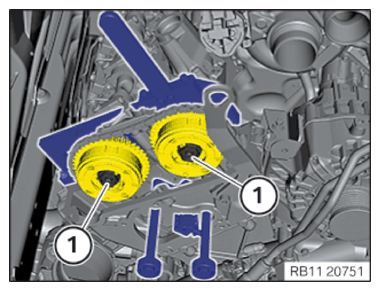

Position VANOS central valves (1) .
Hand-tighten VANOS central valve (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Position the slide rail of cylinder bank 2 (3) .
Tighten down screw (2) .

TIGHTENING TORQUE SPECIFICATIONS

Flat-head screw to the slide rail
Flat-head screw M6x67	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATIONS

Collar screw to the slide rail
Collar screw M6x48	Tightening torque	10 Nm

NOTE: RISK OF DAMAGE
Damage to timing chain or timing chain drive.
Turning the engine without chain tensioner or special tool can result in damage to the timing chain and timing chain drive.

Always turn the engine with the chain tensioner or the special tool.

Courtesy of BMW OF NORTH AMERICA, INC.

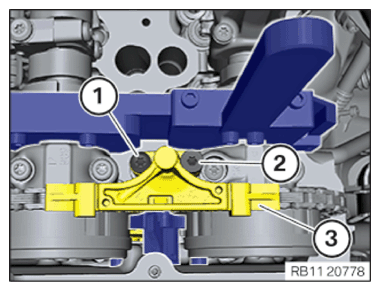

Position the special tool 2 249 162 on the cylinder head and apply the screws (1) hand-tight.
Exchange the screw (2) on the special tool 2 249 162 with an (M8x15) hexagon screw.
Preload the special tool 2 249 162 at hexagon screw (2) with special tool 0 496 778 (00 9 460) to 0.6 Nm.

TIGHTENING TORQUE SPECIFICATIONS

Preload timing chain
tightening torque	0.6 Nm

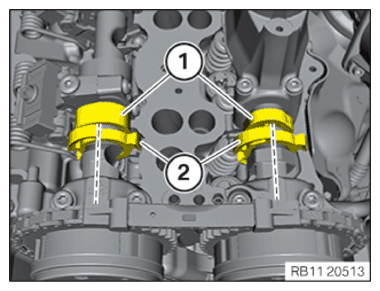

Place lines near the hexagon head on the VANOS central valves (1) and the VANOS adjusters (2) .
The angle must be 60°.

Courtesy of BMW OF NORTH AMERICA, INC.

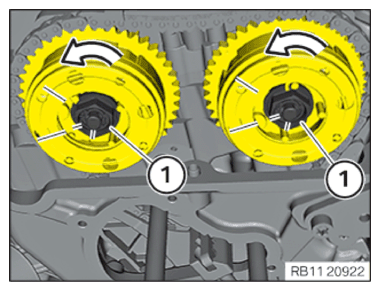

Turn VANOS central valves (1) counterclockwise near the hexagon head to loosen until the top mark on the VANOS central valve lines up with the bottom mark.
The rotational angle is 60°.

Courtesy of BMW OF NORTH AMERICA, INC.
Turn the engine by 90° counter-clockwise at central bolt.
Make sure the special tools (1) 0 493 882 (11 9 190) and 0 496 366 (11 8 570) (2) do not collide with other components.
Remove the special tools 0 496 366 (11 8 570) (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

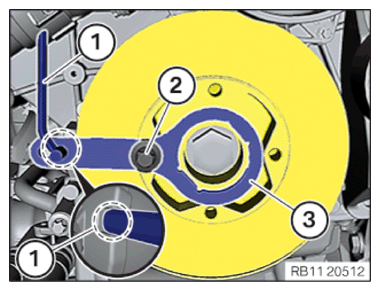

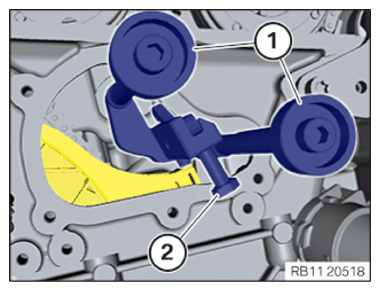

Position special tool (1) 0 493 882 (11 9 190) in the recess in the engine block.

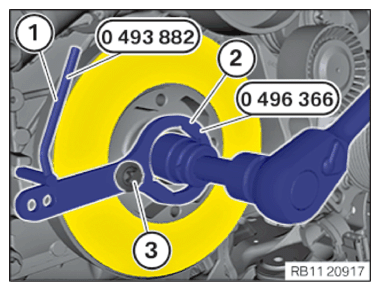

Rotate engine on the central bolt clockwise until the special tool 0 493 882 (11 9 190) (1) is against the special tool 0 496 366 (11 8 570) (2) .
Attach the special tool 0 496 366 (11 8 570) (3) to the vibration absorber with a screw from the belt pulley (2) and hand-tighten.
Remove special tool (1) 0 496 366 (11 8 570) .

Courtesy of BMW OF NORTH AMERICA, INC.
Check if the screws (1) and the special tool 2 249 162 are applied hand-tight.
Check the preload on special tool 2 249 162 at hexagon screw 2 with special tool 0 496 778 (00 9 460) with 0.6 Nm.

TIGHTENING TORQUE SPECIFICATIONS

Preload timing chain
tightening torque	0.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten VANOS central valves (1) .

TIGHTENING TORQUE SPECIFICATIONS

VANOS central valve initial torque
VANOS central valve	Joining torque	5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate engine on the central bolt until the special tool lines up with the engine block bridges.
The special tool 0 496 366 (11 8 570) (3) must be fastened to the vibration absorber with a screw from the belt pulley (2) .
With the crankshaft in the installation position, use the special tool 0 493 882 (11 9 190) (1) to insert it onto the bridges and fasten.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten VANOS central valves (1) .

TIGHTENING TORQUE SPECIFICATIONS

VANOS central valve second tightening
VANOS central valve	Joining torque	30 Nm
VANOS central valve	Joining torque	50 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

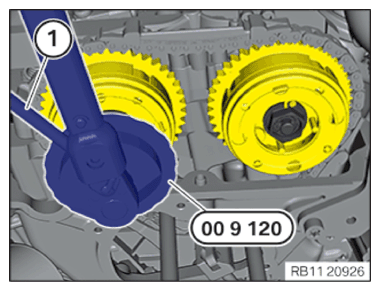

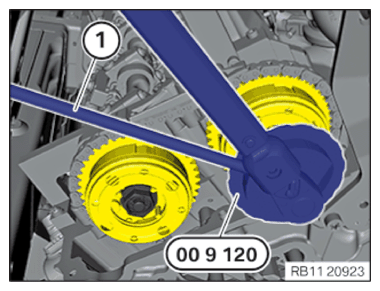

Position special tool 0 490 504 (00 9 120) (1) on the VANOS central exhaust valve.
The magnetic base of the special tool 0 490 504 (00 9 120) must be attached to a magnetic component in the engine compartment.
Make sure the flexible element of the special tool 0 490 504 (00 9 120) (1) does not collide with other components.

Courtesy of BMW OF NORTH AMERICA, INC.

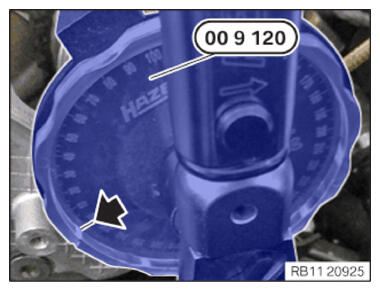

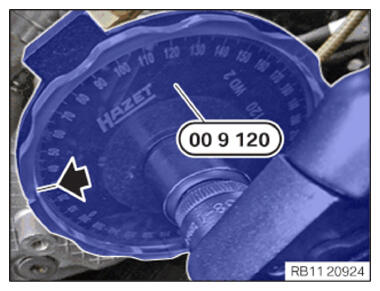

Set the dial gauge on the special tool 0 490 504 (00 9 120) to zero.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten VANOS central intake valve until the needle on the special tool 0 490 504 (00 9 120) is at 30°.

TIGHTENING TORQUE SPECIFICATIONS

VANOS central valve third tightening
VANOS central valve	Angle of rotation	30°

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 0 490 504 (00 9 120) (1) on the VANOS central intake valve.
The magnetic base of the special tool 0 490 504 (00 9 120) must be attached to a magnetic component in the engine compartment.
Make sure the flexible element of the special tool 0 490 504 (00 9 120) (1) does not collide with other components.

Courtesy of BMW OF NORTH AMERICA, INC.
Set the dial gauge on the special tool 0 490 504 (00 9 120) to zero.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten VANOS central intake valve until the needle on the special tool 0 490 504 (00 9 120) is at 30°.

TIGHTENING TORQUE SPECIFICATIONS

VANOS central valve third tightening
VANOS central valve	Angle of rotation	30°

Courtesy of BMW OF NORTH AMERICA, INC.

Check the camshaft positions of cylinder bank 1.
The cams (1) should be in the position shown.

The increment wheels (2) should each form a straight line with the exhaust camshaft bearing cap and the intake camshaft bearing cap.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for right component only. The procedure on the left side is identical.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Courtesy of BMW OF NORTH AMERICA, INC.

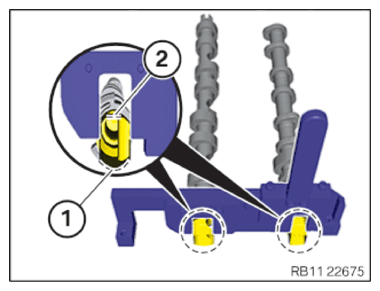

Ensure that the polished surfaces of the camshafts (1) point upward.
Ensure that the rounded surfaces (1) are pointing down at the cylinder head.
Check timing again and assess.
Loosen screws (2) .
Remove the special tools 2 249 117 (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the special tool 0 493 882 (11 9 190) (1) .
Release the screw of the belt pulley (2) .
Remove the special tool 0 496 366 (11 8 570) (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

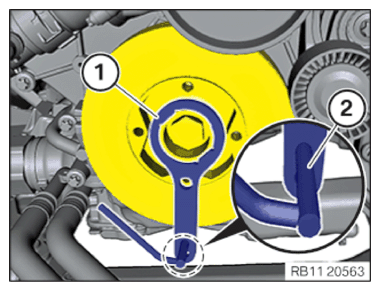

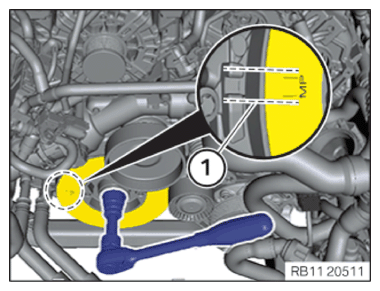

Crank the engine at the central bolt in clockwise direction two times until the installation position (MP) (1) of the vibration absorber is positioned flush with the marks of the engine block.

Courtesy of BMW OF NORTH AMERICA, INC.
Position special tool 0 496 366 (11 8 570) (3) on the vibration absorber.
Position special tool 0 493 882 (11 9 190) (1) in special tool 0 496 366 (11 8 570) .
NOTE: Do not slide the special tool 0 493 882 (11 9 190) (1) too far in; otherwise, it will collide with other components when the crankshaft is turning.
Rotate the engine on the central bolt in direction of engine rotation until the special tool lines up with the engine block marks.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the special tool 0 496 366 (11 8 570) (3) to the vibration absorber with a screw from the belt pulley (2) and hand-tighten.
With the crankshaft in the installation position, use the special tool 0 493 882 (11 9 190) (1) to insert it onto the marks and fasten.

Check

Position special tool 2 249 117 (1) on the camshafts of cylinder bank 1.
Check if the camshafts can be fastened with the special tool 2 249 117 (1) .
Check if the special tool 2 249 117 can be brought in contact with the cylinder head using the two screws of the cylinder head cover (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The camshafts can be fastened.

Measure

Timings are OK.
Loosen screws (2) .

Remove the special tools 2 249 117 (1) .

Continue the repair in the next step.

Result

» The camshafts cannot be fastened.

Measure

Adjust the timings of cylinder bank 1.

Remove the special tool 0 493 882 (11 9 190) (1) .
Release the screw of the belt pulley (2) .
Remove the special tool 0 496 366 (11 8 570) (3) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (2) .
Remove the special tool 2 249 117 (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
