Remove the right tension strut on the shock tower

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing trailing link at spring bolt

NOTE: TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.

Version A:
Loosen screws (1) and (2).
Remove tension strut (3) at the shock tower upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

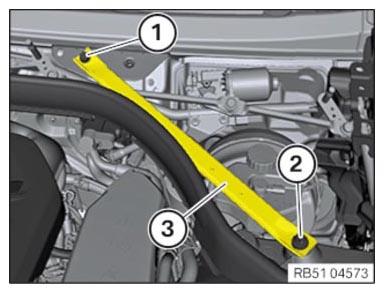

Version B:
Loosen screws (1) and (2).
Remove tension strut (3) at the shock tower upwards.

Courtesy of BMW OF NORTH AMERICA, INC.
