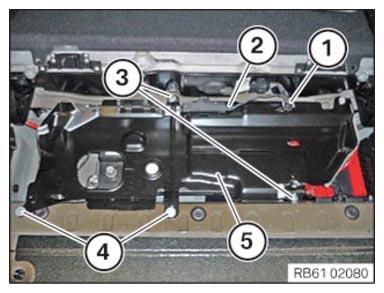

Remove the battery cover plate

Unclip the holder (1).
Unlock and loosen connector (2).
Loosen nuts (3).
Loosen the screws (4) and remove the battery cover plate (5).

G15193075

Courtesy of BMW OF NORTH AMERICA, INC.
