Install the tension strut on the right shock tower
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install tension strut on shock tower
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.

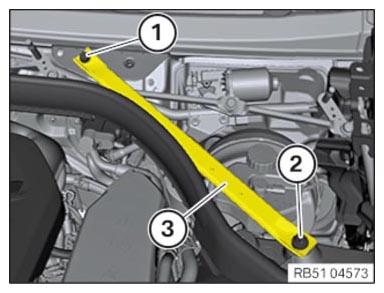

- Version A:
- Install the tension strut (3) on the shock tower.
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Tension strut on firewall | ||
| M10x25 screw | tightening torque | 56 Nm |
- Replace screws (2)
.
Parts: Screws
- Tighten down screws (2) .
TIGHTENING TORQUES SPECIFICATION
| Tension strut to shock tower | ||
| screw Replace screws. |
Joining torque | 56 Nm |
| Angle of rotation | 90° | |

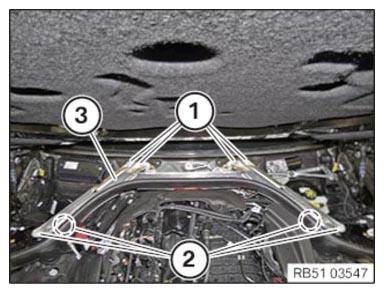

- Version B:
- Install tension strut (3) on the shock tower.
- Tighten down screw (1) .
TIGHTENING TORQUES SPECIFICATION
| Tension strut on firewall | ||
| M10x25 screw Replace screws. |
tightening torque | 56 Nm |
- Replace the screw (2)
.
Parts: Screw
- Tighten down screw (2) .
TIGHTENING TORQUES SPECIFICATION
| Tension strut to shock tower | ||
| M10x25 screw Replace screws. |
Joining torque | 56 Nm |
| Angle of rotation | 90° | |
