Install the battery cover plate

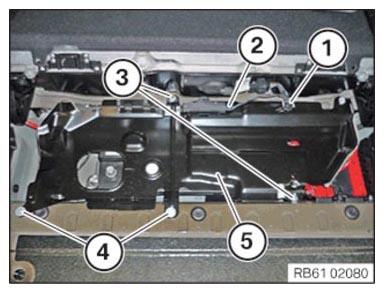

- Join the battery cover plate (5).
- Tighten down screws (4).
TIGHTENING TORQUES SPECIFICATION
| Battery cover plate to body | ||
| screw | Tightening torque | 8 Nm |
| Nut | Tightening torque | 8 Nm |
- Tighten nuts (3).
TIGHTENING TORQUES SPECIFICATION
| Battery cover plate to body | ||
| screw | Tightening torque | 8 Nm |
| Nut | Tightening torque | 8 Nm |
- Connect and lock the plug connection (2).
- Clip in the holder (1).
