Removing the front section of the front wheel arch cover on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove the front section of the front wheel arch cover
NOTE:

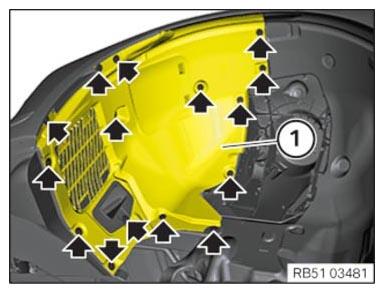

To provide a better overview: Schematic diagram with partially hidden components.
- Remove screws (arrows).
- Guide out the front section (1) of the front wheel arch cover.
