Install spray guard

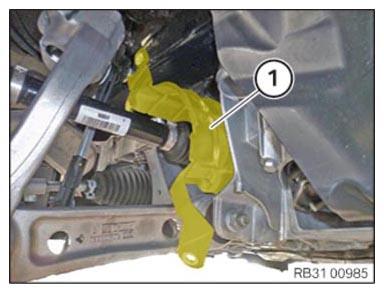

Feed in the spray guard (1) and position it.

Courtesy of BMW OF NORTH AMERICA, INC.

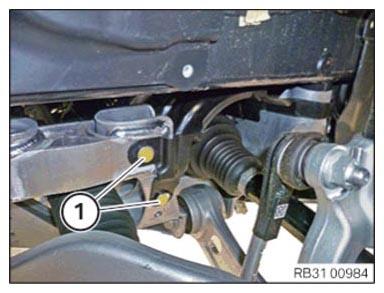

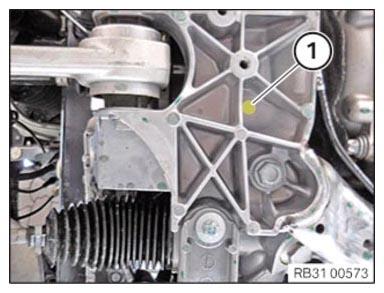

Tighten nut (1) .

TIGHTENING TORQUES SPECIFICATION

Splash guard on front axle support
M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

If still installed:

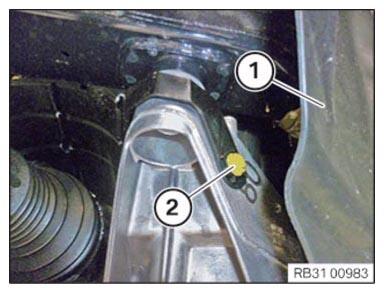

Bend the rear section of the front wheel arch cover (1) aside.

Tighten down screw (2) .

TIGHTENING TORQUES SPECIFICATION

Splash guard on front axle support
M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Splash guard on front axle support
M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
