Secure guide rail camshaft on top of cylinders 1 to 4

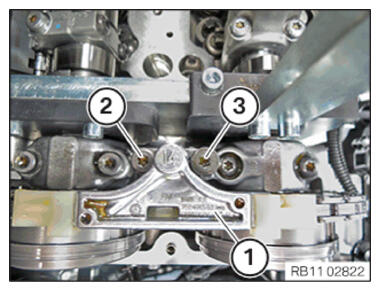

Secure the slide rail (1) with bolts (2) and (3) .

TIGHTENING TORQUE SPECIFICATIONS

Sliding rail to cylinder head
M6x67 M6x48	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
