Removing the front holder for the intake plenum
Removing the front holder for the intake plenum

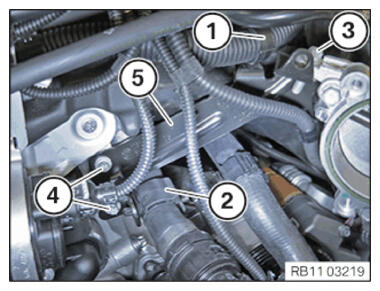

Unclip the wiring harness
(1)
and
(2)
from the holder
(5)
.
Loosen screws
(3)
and
(4)
.
Courtesy of BMW OF NORTH AMERICA, INC.

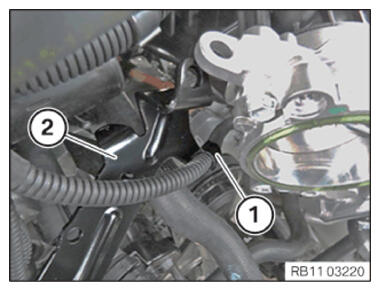

Unclip the wiring harness
(1)
from the stop
(2)
and remove the holder
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
