Release the charge air hose from the exhaust turbocharger of the cylinders 1 to 4
Release the charge air hose from the exhaust turbocharger of the cylinders 1 to 4

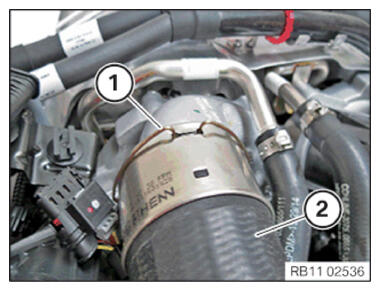

Loosen retaining clip
(1)
on charge air hose.
Detach the charge air hose
(2)
from the exhaust turbocharger.
