Install the coolant feed line on the exhaust turbocharger for cylinders 5 to 8
Install the coolant feed line on the exhaust turbocharger for cylinders 5 to 8

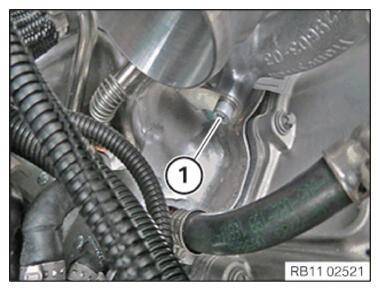

Tighten the bolt
(1)
on the exhaust turbocharger.
TIGHTENING TORQUE SPECIFICATIONS
Coolant line to exhaust turbocharger
M6x16
tightening torque
10 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
