Fastening the coolant feed line at the exhaust turbocharger for the cylinders 1 to 4
Fastening the coolant feed line at the exhaust turbocharger for the cylinders 1 to 4

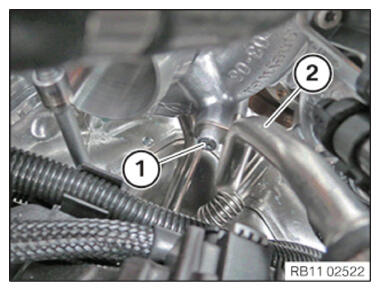

Insert the coolant feed line
(2)
.
Tighten the screw
(1)
at the exhaust turbocharger.
TIGHTENING TORQUE SPECIFICATIONS
Coolant line to exhaust turbocharger
M6x16
tightening torque
10 Nm
