Detach the charge air hose from the exhaust turbocharger of cylinders 5 to 8
Detach the charge air hose from the exhaust turbocharger of cylinders 5 to 8

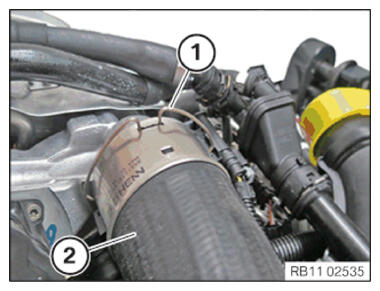

Loosen retaining clip
(1)
on charge air hose.
Detach the charge air hose
(2)
from the exhaust turbocharger.
Courtesy of BMW OF NORTH AMERICA, INC.
