Cylinder head cover screw connection at cylinders 1 to 4 with impaired accessibility
Cylinder head cover screw connection at cylinders 1 to 4 with impaired accessibility

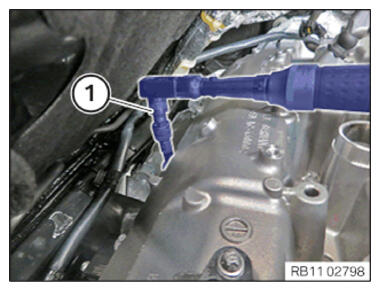

Screws located in the rear area of the cylinder head cover can be secured with a wobble joint
(1)
(swivels).
TIGHTENING TORQUE SPECIFICATIONS
Cylinder head cover to cylinder head
M6x30 M6x70
Tightening torque
10 Nm
