11 36 Variable Camshaft Timing Control System (VANOS)
>>
11 36 125 Removing and installing/replacing intake VANOS central valve (right, where applicable) (750i 2016-2019)
>>
Install the VANOS central valve, 1-4, intake
Install the VANOS central valve, 1-4, intake

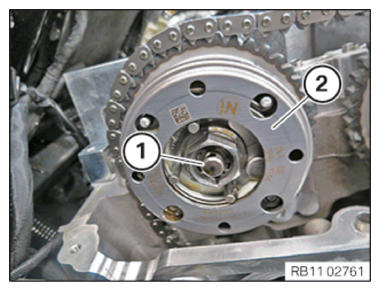

Position the intake adjuster
(2)
.
Hand-tighten the VANOS central valve
(1)
of the intake cam phaser
(2)
.
