Installing connecting bracket to radiator

• Replace O-ring.

  Parts:  O-ring

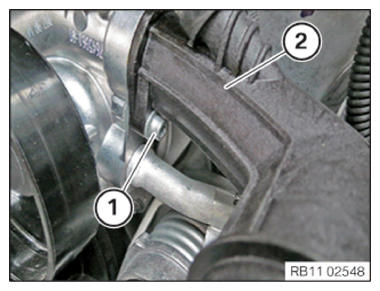

• Connect connecting bracket (2)  .
• Tighten down screw (1)  .

TIGHTENING TORQUE SPECIFICATIONS

Connecting bracket on coolant pump (plastic)
M6	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
