Adjusting the timing at cylinders 5-8
NOTE:
TECHNICAL INFORMATION
The work must be performed with vehicle care to prevent component damage.
The work must be performed with vehicle care to prevent component damage.

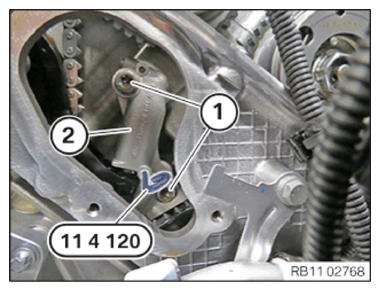

- Press back the chain tensioner (2) using the tensioning rail.
- Lock the piston on the chain tensioner (2) using the special tool 0 491 012 (11 4 120) .
- Loosen the screws (1) and remove the chain tensioner (2) .
NOTE:
TECHNICAL INFORMATION
Due to more difficult accessibility: Exchange the screw on the special tool with an M8x15 screw.
Due to more difficult accessibility: Exchange the screw on the special tool with an M8x15 screw.

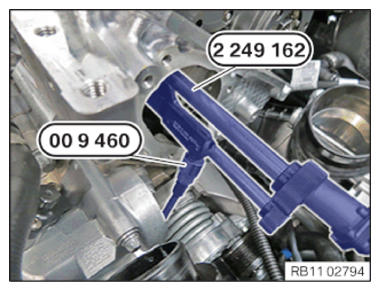

- Adjust special tool 0 496 778 (00 9 460) to 0.6 Nm.
- Pretension timing chain with special tool 2 249 162
.

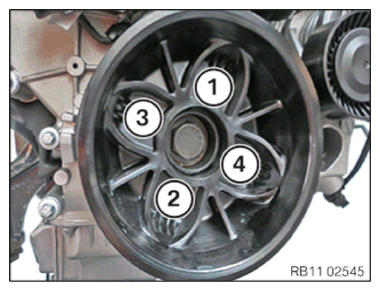

- Loosen screws in the order (4) to (1) . Remove the belt pulley.
- Note the identification MP (= installation position).
The identification MP (= installation position) is important for the installation of the special tool 0 496 366 (11 8 570).
- Crank the engine further on the central bolt until special tool 0 493 882 (11 9 190)
can be positioned in the timing case cover.NOTE: Special tools can only be mounted if the ground surfaces point upward (see arrow).

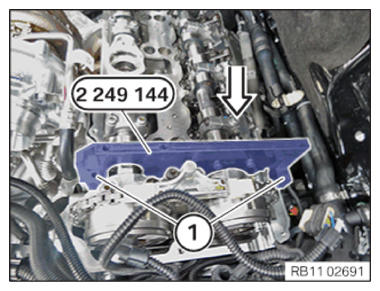

- Position special tool 2 249 144
on the intake camshaft of bank 5-8 in the direction of the arrow and secure with one screw (1)
each.TIGHTENING TORQUE SPECIFICATIONS

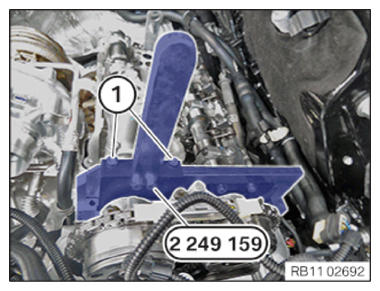

Special tool, gauge to cylinder head M6x35 Tightening torque 10 Nm - Position special tool 2 249 159 on the exhaust camshaft and screw to special tool 2 249 144 .
TIGHTENING TORQUE SPECIFICATIONS
| Special tool to special tool, gauges | ||
| M6x20 | Tightening torque | 10 Nm |
- Align the intake and exhaust camshafts so that the ground surfaces of the camshaft point upwards.
All special tools 2 249 117 must be mounted for the screw connection.
- Crank the engine backwards by 10° using the central bolt.
- Insert special tool 0 493 882 (11 9 190) at the timing case.

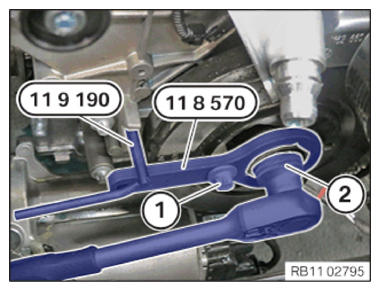

- Crank the crankshaft on the central bolt using a reversible ratchet (2)
in the direction of engine rotation until it is in contact with special tool 0 493 882 (11 9 190)
, see figure.

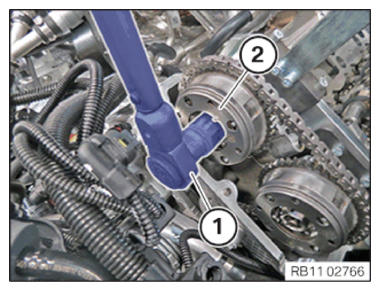

- Insert the VANOS central valve (1) of the intake side.
TIGHTENING TORQUE SPECIFICATIONS
| 1. VANOS central valve of variable camshaft timing control to camshaft | ||
| M22x1 | Joining torque | 5 Nm |

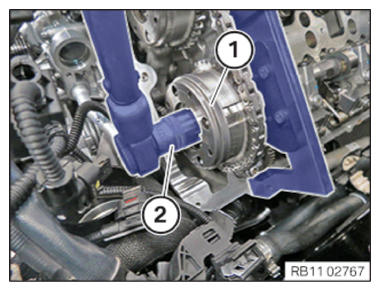

- Insert the VANOS central valve (1) of the exhaust side.
TIGHTENING TORQUE SPECIFICATIONS
| 1. VANOS central valve of variable camshaft timing control to camshaft | ||
| M22x1 | Joining torque | 5 Nm |
- Crank the engine further on the central bolt until special tool 0 493 882 (11 9 190)
can be positioned in the timing case cover.
The engine is now in the crankshaft position of 150 degrees before the TDC firing position of cylinder 1.
- Insert the VANOS central valve (1) of the intake side.
TIGHTENING TORQUE SPECIFICATIONS
| VANOS central valve variable camshaft timing control to camshaft | ||
| M22x1 | 2. Joining torque | 30 Nm |
| 3. Joining torque | 50 Nm | |
| 4. Angle of rotation | 30° | |
- Insert the VANOS central valve (1) of the exhaust side.
TIGHTENING TORQUE SPECIFICATIONS
| VANOS central valve variable camshaft timing control to camshaft | ||
| M22x1 | 2. Joining torque | 30 Nm |
| 3. Joining torque | 50 Nm | |
| 4. Angle of rotation | 30° | |
- Install the chain tensioner (2) .
- Secure screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Chain tensioner to cylinder head | ||
| M7 | Joining torque | 13 Nm |
- Remove special tool 0 491 012 (11 4 120) .

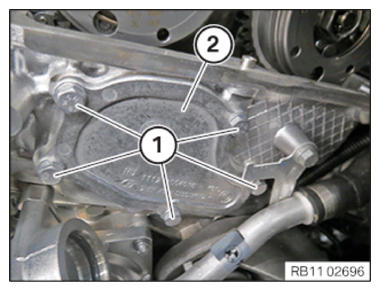

- Position the timing case cover (2) .
Secure screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| End cover (oil) to cylinder head | ||
| M6x20 | Tightening torque | 10 Nm |
