Remove the catalytic converter for cylinders 5 to 8

Preliminary work

Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
Refer to REMOVING THE REAR DIFFUSER .
Refer to IF INSTALLED: REMOVING THE TORSION STRUT ON THE RIGHT AND LEFT WHERE REQUIRED .
Refer to REMOVING THE REAR AXLE COVER .
Refer to REMOVING EXHAUST SYSTEM .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING INTAKE SILENCER HOUSING .
Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVING LEFT AND RIGHT WIPER ARM .
Refer to REMOVING THE COWL COVER .
Refer to REMOVING TRAILING LINK AT SPRING BOLT .
Refer to REMOVING THE SEAL FOR THE HOOD REAR .
Refer to REMOVING THE COWL UPPER PART IN THE CENTER .
Refer to REMOVING THE LAMBDA OXYGEN SENSOR AND THE MONITORING OXYGEN SENSOR FOR CYLINDERS 1 TO 4 .
Refer to REMOVING THE LAMBDA OXYGEN SENSOR AND THE MONITORING OXYGEN SENSOR FOR CYLINDERS 5 TO 8 .
Refer to REMOVING ENGINE VENTILATION LINE .
Refer to REMOVING UPPER HEAT SHIELD .
Refer to RELEASING SCREW BETWEEN THE LEFT AND RIGHT HEAT SHIELD .
Refer to REMOVING RIGHT HEAT SHIELD .
Refer to REMOVING THE LEFT HEAT SHIELD .
Refer to BENDING THE HEAT SHIELD TO THE REAR .
Refer to REMOVING VACUUM PUMP .

NOTE: TECHNICAL INFORMATION
In order to be able to remove the catalytic converter for cylinders 5 to 8, the catalytic converter for cylinders 1 to 4 also needs to be removed.

Release the nuts (1) at the bottom on the catalytic converter for cylinders 5 to 8.
Loosen catalytic converter from holder.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the nuts (1) at the bottom on the catalytic converter for cylinders 1 to 4.
Loosen catalytic converter from holder.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen clamp (1) and remove.
Loosen clamp (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1) .
Loosen screws (2) .
Loosen screw (3) .
Remove holder (4) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1) .
Loosen screws (2) .
Loosen screw (3) .
Remove holder (4) .

Courtesy of BMW OF NORTH AMERICA, INC.

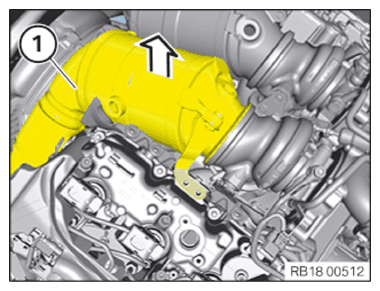

Lift catalytic converter for cylinders 1 to 4 (1) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

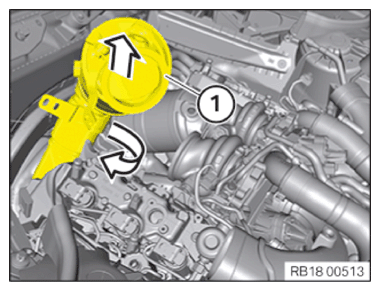

Unscrew catalytic converter for cylinders 1 to 4 (1) upwards and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

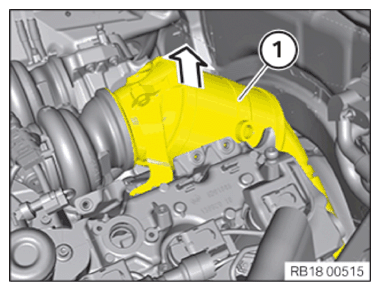

Lift catalytic converter for cylinders 5 to 8 (1) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

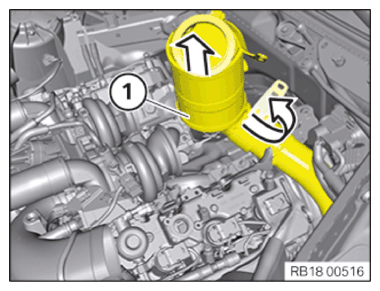

Unscrew catalytic converter for cylinders 5 to 8 (1) upwards and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
