Install the right exhaust manifold

Clean sealing surfaces.
Replace the seal (1) .
Parts: Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
Position the exhaust manifold (2) and the sliding rail (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.

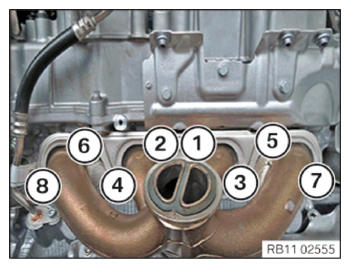

Tighten the nuts in the sequence (1) to (8) .

Fig 1: Right Exhaust Manifold Nuts Tightening Sequence

G15141009

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Exhaust manifold to cylinder head
M8 Replace nuts.	tightening torque	15 Nm
