11 61 065 Removing and installing/replacing the left intake plenum (750i 2016-2019)
>>
Disconnecting front knock sensor plug connection for cylinders 5-8
Disconnecting front knock sensor plug connection for cylinders 5-8

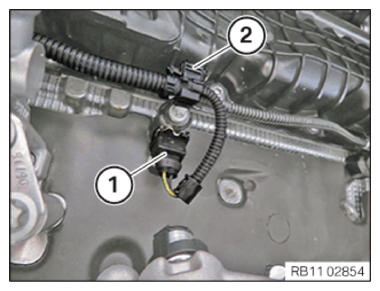

Disconnect plug connection
(1)
on knock sensor.
Unclip line from retaining clip
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
