During replacement of the intake plenum: Rebuild the holder

Preliminary work

• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING LEFT AND RIGHT WIPER ARM .
• Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
• Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
• Refer to REMOVING THE SEAL FOR THE HOOD REAR .
• Refer to REMOVING THE COWL COVER .
• Refer to REMOVING THE COWL UPPER PART IN THE CENTER .
• Refer to REMOVING TRAILING LINK AT SPRING BOLT .
• Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
• Refer to PARTIALLY LOOSENING THE LEFT-HAND CHARGE AIR COOLER .
• Refer to REMOVING LEFT THROTTLE VALVE ASSEMBLY .
• Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
• Refer to REMOVING THE RIGHT THROTTLE BODY .
• Refer to PARTIALLY LOOSENING THE RIGHT-HAND CHARGE AIR COOLER .
• Refer to REMOVING THE ENGINE VENTILATION LINE FROM THE INTAKE SYSTEM .
• Refer to REMOVING THE TANK VENT LINE .
• Refer to REMOVING THE INTAKE PLENUM .

• Parts:  Intake plenum

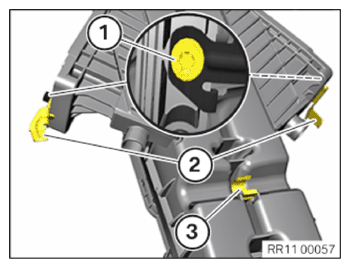

• Loosen screws (1)  .
• Remount the holder (2)  .
• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Holder for tank vent valve on manifold for exhaust air
  M6 x 12	tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remount the holder (3)  .

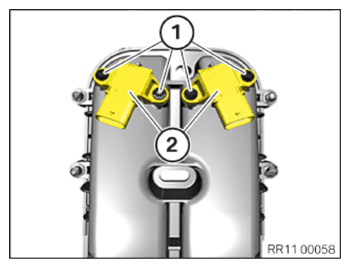

• Loosen screws (1)  .
• Remounting pressure sensors (2)  .
• Tighten down screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE INTAKE PLENUM .
• Refer to INSTALLING THE TANK VENT LINE .
• Refer to INSTALLING THE ENGINE VENTILATION LINE ON THE INTAKE SYSTEM .
• Refer to MOUNTING THE LEFT-HAND CHARGE AIR COOLER .
• Refer to INSTALLING THE LEFT THROTTLE BODY .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to MOUNTING THE RIGHT-HAND CHARGE AIR COOLER .
• Refer to INSTALLING THE RIGHT THROTTLE BODY .
• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING ACOUSTIC COVER .
