Installing the electrical steering column

Carefully insert the steering column from the top and position.

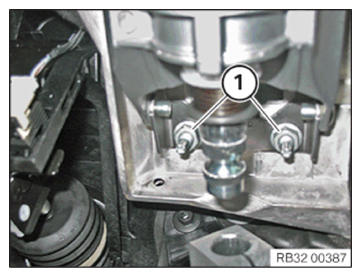

Screw on nuts (1) by a few revolutions.

Courtesy of BMW OF NORTH AMERICA, INC.
Screw on nuts (1) by a few revolutions.
Tightening with standard tools (2) takes place in the next step.

Courtesy of BMW OF NORTH AMERICA, INC.
The nuts must be tightened in the order (1) to (4) .

TIGHTENING TORQUE SPECIFICATIONS

Steering column to dashboard support
M8 Observe tightening sequence.	Tightening torque	21.4 Nm

Fig 1: Steering Column Nuts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Connect connectors (2) and lock.
Secure the cable (1) on the steering column.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE SUPPORT FOR DASHBOARD .
Refer to INSTALLING THE DASHBOARD .
Refer to INSTALLING FOLD-OUT COMPARTMENT ON THE LEFT .
Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .

Installing the instrument cluster trim.

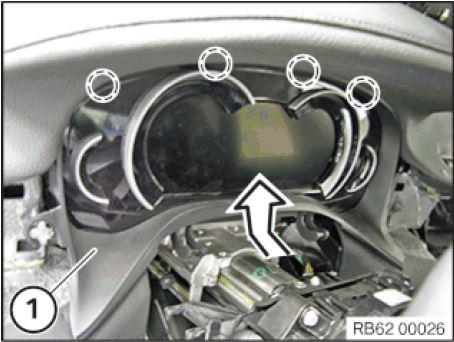

Clip the trim (1) into the marked areas in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
Refer to INSTALLING STEERING WHEEL .
Refer to INSTALLING THE AIRBAG UNIT OF THE STEERING WHEEL OR SPORTS STEERING WHEEL .
Refer to INSTALLING THE LIGHT OPERATING UNIT .
Refer to INSTALLING THE FRONT SPEAKER HOLDER .
Refer to INSTALLING THE HEADUNIT HIGH (HU-H) .
Refer to INSTALLING RADIO OPERATING UNIT AND AIR CONDITIONING CONTROL PANEL .
Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
Refer to INSTALLING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE LEFT A-PILLAR .
Refer to INSTALLING BOTH FRONT DOOR SILL COVER STRIPS .
Refer to INSTALLING THE CENTER CONSOLE .
Refer to INSTALLING THE CENTER STACK TRIM .
Refer to INSTALLING THE FOOTWELL TRIM PANEL ON THE RIGHT .
Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
Refer to INSTALLING THE FRONT STORAGE COMPARTMENT .
Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
Refer to INSTALLING THE REAR STORAGE COMPARTMENT/DVD PLAYER .
Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
Refer to INSTALLING REAR UNDERBODY PROTECTION .
Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
Refer to CHECKING THE STRAIGHT-AHEAD DRIVING POSITION OF THE STEERING WHEEL .
Refer to CHECKING THE AIRBAG FOR FUNCTION .
Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
