Installing the controller drive for indirect ventilation

• Correctly position the air duct (1)  and engage in the dashboard (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Correctly position the air duct (4)  in the dashboard and tighten the screws (3)  .
• Secure with adhesive tape (2)  .
• Secure the cable clips (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

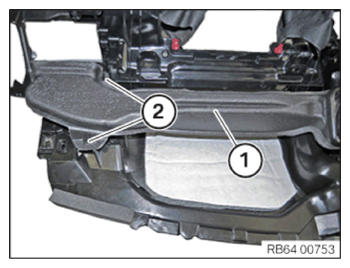

• Secure the air duct (1)  to the mountings (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the air duct (1)  to the mountings (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Push the air ducts (2)  upwards until the detents (1)  lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and connect the connector (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.
