Install new parts

Install new parts, left side rail

Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324
Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE SPECIFICATION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K1 to the bonding surfaces.
ADHESIVE DESCRIPTION

Body adhesive K1 195 ml 83190413015

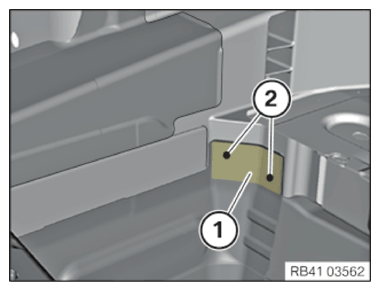

Install and secure the new parts with an alignment bracket or a universal fixture.
Rivet the new parts in the areas (1) with blind rivets N1.
CONSUMABLE SPECIFICATION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414
In area (2) , use 1 x blind rivet N9.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION

Blind rivet N9
Ø 6.5 mm; clamping area 8.8-10.8 mm 83197239634
Rivet the new parts in the area (1) with blind rivets N1.
CONSUMABLE SPECIFICATION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414

Courtesy of BMW OF NORTH AMERICA, INC.
Rivet the new parts in the area (1) with blind rivets N1.
CONSUMABLE SPECIFICATION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414

Courtesy of BMW OF NORTH AMERICA, INC.
Weld new part in the area (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Weld new part in the area (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the left luggage compartment floor

Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324
Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE SPECIFICATION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K5 to the bonding surfaces.
ADHESIVE DESCRIPTION

Body adhesive K5 50 ml 83192158654
Install the new part and rivet it in the area (1) with blind rivets N1.
CONSUMABLE SPECIFICATION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414
In the area (2) , use a bind rivet N2.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION

Blind rivet N2
Ø 6.5 mm; clamping area 4.8-6.8 mm 83190301419
Weld the new part in the area (3) .
MAG weld the new part in the area (1) . The weld seam has a length of 10 mm.
Avoid excessive application of heat to adhesive area (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Rivet the new part in area (2) with blind rivets N2.
CONSUMABLE SPECIFICATION

Blind rivet N2
Ø 6.5 mm; clamping area 4.8-6.8 mm 83190301419
Weld the new part in the area (1) .
Avoid excessive application of heat to adhesive area (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Install new part, middle luggage compartment floor

Pre-clean the bonding surfaces (1) on the new part and on the vehicle with cleaning agent R2.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324
(1) Clean bonding surfaces on vehicle and on new part with cleaning agent R1.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K1 on the bonding surfaces (1) on the new part and body.
ADHESIVE DESCRIPTION

Body adhesive K1 195 ml 83190413015
Pre-clean the bonding surfaces (1) on the new part and on the vehicle with cleaning agent R2.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324
(1) Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE SPECIFICATION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K1 on the bonding surfaces (1) on the new part and body.

Courtesy of BMW OF NORTH AMERICA, INC.

ADHESIVE DESCRIPTION

Body adhesive K1 195 ml 83190413015

NOTE: Perform the steps on the left and right side.
Pre-clean the bonding surfaces (1) on the new part and on the vehicle with cleaning agent R2.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324

Courtesy of BMW OF NORTH AMERICA, INC.
(1) Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE SPECIFICATION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K1 on the bonding surfaces (1) on the new part and body.
ADHESIVE DESCRIPTION

Body adhesive K1 195 ml 83190413015

NOTE: TECHNICAL INFORMATION
When installing the new part, make sure that all bonding surfaces have sufficient adhesive.
Install new parts.
In area (1) , rivet the new part with blind rivets N1 (2) .
CONSUMABLE SPECIFICATION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414

Courtesy of BMW OF NORTH AMERICA, INC.
Rivet new part in area (1) with blind rivets N1 (2) and blind rivet N2 (3) .
CONSUMABLE SPECIFICATION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION

Blind rivet N2
Ø 6.5 mm; clamping area 4.8-6.8 mm 83190301419
Weld the new part in the area (4) .
NOTE: Perform the steps on the left and right side.
Rivet new part in area (1) with blind rivet N1 (2) and blind rivet N2 (3) .
CONSUMABLE SPECIFICATION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION

Blind rivet N2
Ø 6.5 mm; clamping area 4.8-6.8 mm 83190301419
Weld the new part in the area (4) .
Weld the new parts in the area (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Weld the new parts in the area (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Weld the new parts in the area (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Weld the new parts in the area (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Weld the new parts in the area (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to ACTIVATE HIGH-VOLTAGE SYSTEM .
Refer to INSTALL FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
