Preparing New Part

• Release the bonded rivet connections in the areas (1). Remove connecting plate (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove adhesive residue from bonding surfaces.
• Seal the hole (1) by MAG weld.
• Drill out holes (2) to dia. 6.8 mm.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Adjust new parts to fit with alignment bracket or universal fixture and secure.
• Prepare the reinforcement (1) in the area (2) for joining by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

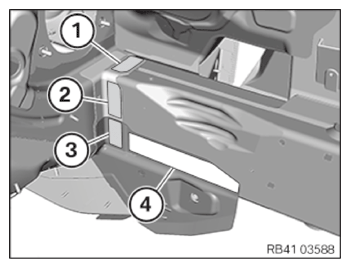

• Prepare the areas (1) through (4) for structural adhesive bonding of steel to steel and steel to aluminum.
• In the areas (1) and (2), drill out the holes to Ø 6.8 mm and transfer to the new part.
• In the area (3), drill out holes to Ø 6.8 mm and transfer to both new parts.
• In the area (4), drill out holes to Ø 6.8 mm. Number and position analogous to the flow-drill screws from series production.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare areas (1) for structural adhesive bonding of steel to aluminum.
• In areas (1), drill out holes to Ø 6.8 mm and transfer to the new part.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare areas (1) and (2) for structural adhesive bonding of steel to aluminum.
• In areas (1) and (2), transfer the holes from the wheel well to the strut tower. Drill out holes to dia. 6.8 mm.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare areas (1) for structural adhesive bonding of steel to aluminum.
• Transfer the holes from the engine compartment bulkhead to the strut tower in the areas (1). Drill out holes to dia. 6.8 mm.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  For additional information see: 41 00... Spot-weld bonding steel components
• Adjust the new part (1) and prepare it for joining by welding in the areas (2) and (3).
• In areas (3), observe the procedure when replacing spot-welded adhesive joints for series production.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare areas (1) and separating cuts (2) for joining by welding.
  NOTE: TECHNICAL INFORMATION
  For additional information see: 41 00... Spot-weld bonding steel components
• In the area (1), observe the procedure when replacing spot-welded adhesive joints from series production.
• Prepare areas (3) and (4) for structural adhesive bonding of steel to aluminum.

  Courtesy of BMW OF NORTH AMERICA, INC.

• In the areas (3), drill cylinder bores of Ø 6.8 mm on new parts, similar to series production.
• In area (4), set a bore of Ø 6.8 mm for blind rivet.
• Prepare the areas (1) and (2) for joining by welding.
• In areas (2), observe the procedure when replacing spot-welded adhesive joints for series production.

Note the bonded rivet connections in the areas (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Check ground pins and replace if necessary

• Check the ground pins (1) for stability and renew if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
