Removing the radio operating unit and the air conditioning control panel
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
Preliminary work
- Refer to REMOVING THE FRONT STORAGE COMPARTMENT .
- Refer to REMOVING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
Remove the center stack trim
- Unclip the center stack trim (1) downward with the special tool 0 496 569 (00 9 325)
.
- If installed:
Loosen both screws (1) at the bottom.

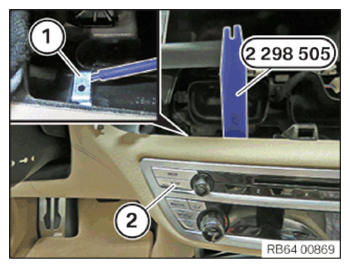

- Unlock the clamps (1) on the left and right and simultaneously press with special tool 2 298 505 .
- Remove the radio operating unit and the air conditioning control panel (2).
- Unlock plug connection (1) and disconnect.
- Feed out cable (arrow) of the radio operating unit and of the air conditioning control panel (2).
- Make sure the connector (3) is not disconnected.
