Installing vehicle electrical system support battery

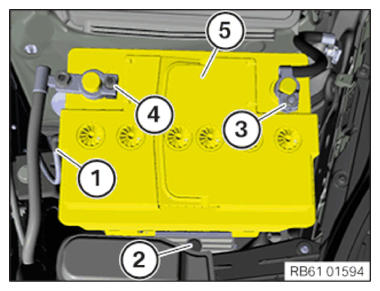

- Install vehicle electrical system support battery (5) .
- Position the vent hose (1) .
- Tighten the battery carrier with screw (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Battery carrier to body | ||
| M8 screw | Tightening torque | 10 Nm |
- Position positive battery terminal (4) on the positive battery terminal.
- Tighten the nut on the positive battery terminal (4) .
TIGHTENING TORQUE SPECIFICATIONS
| Positive battery terminal to battery | ||
| Nut | tightening torque | 5 Nm |
- Position the negative battery terminal (3) on the negative battery terminal.
- Tighten the nut on the negative battery terminal (3) .
TIGHTENING TORQUE SPECIFICATIONS
| Negative battery terminal | ||
| Nut | tightening torque | 5 Nm |
Follow-up work
- Refer to CHECKING THE VENTING HOLES OF THE BATTERY .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
