Connecting negative battery cable of the system battery

TIGHTENING TORQUE SPECIFICATIONS

Battery ground lead to battery
Nut M6 Tightening torque  5 Nm

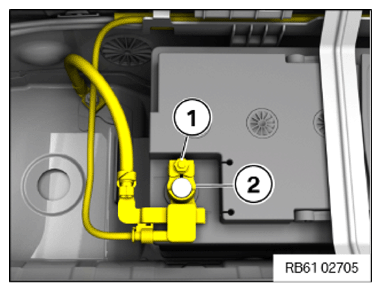

G12676230Courtesy of BMW OF NORTH AMERICA, INC.
