Removing the rear power distribution box
Preliminary work
- Refer to EQUIPMENT SPECIFICATION WITH AUXILIARY BATTERY (ENGINE COMPARTMENT) .
- Refer to REMOVING THE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE STORAGE TRAY .
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to REMOVING THE STORAGE TRAY FOR THE COMPACT SPARE WHEEL .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
NOTE:
TECHNICAL INFORMATION
Fuses can become detached when unlocking the plug connections in the power distribution. Use suitable means to prevent the fuses from falling out.
Fuses can become detached when unlocking the plug connections in the power distribution. Use suitable means to prevent the fuses from falling out.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

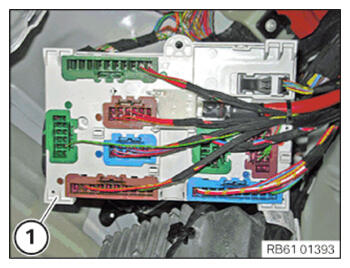

- Unclip the power distribution box (1) (arrows).
- Remove the power distribution box (1).

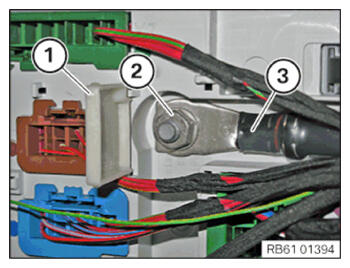

- Open the cover (1).
- Loosen nut (2).
- Remove positive battery cable (3).
- Unlock and disconnect all connectors on the power distribution box (1).
- If applicable, release the cable tie from the positive battery cable.
