Removing the LED module of folding compartment (rear)

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to REMOVING THE DECORATIVE STRIP FROM THE REAR DOOR TRIM PANEL .
Refer to REMOVING REAR DOOR TRIM .

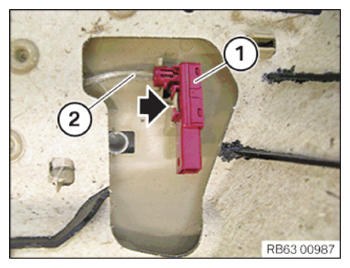

Pull LED module (1) out of holder.
Unclip the LED module (1) from the fiber-optic conductor (2).

G15123798

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING REAR DOOR TRIM PANEL .
Refer to INSTALLING THE DECORATIVE STRIP ON THE REAR DOOR TRIM PANEL .
