Remove the left ambient accent lights

Preliminary work

• Refer to REMOVING THE DECORATIVE STRIP FROM THE REAR DOOR TRIM PANEL .
• Refer to REMOVING REAR DOOR TRIM .

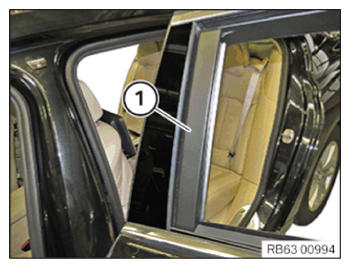

• Unclip the outside ambient accent lights trim (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

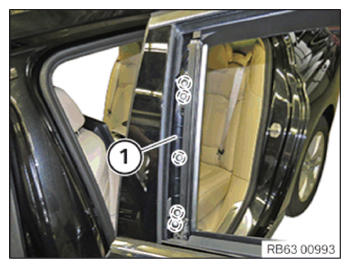

• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

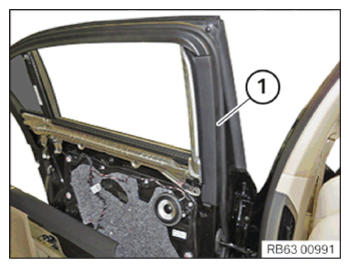

• Unclip the trim of the ambient accent lights on the inside (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

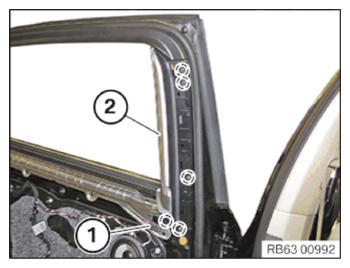

• Unlock and disconnect connector (1).
• Unscrew the screws and remove the ambient accent lights (2).

Courtesy of BMW OF NORTH AMERICA, INC.
