Install the tail light on the trunk lid on the left

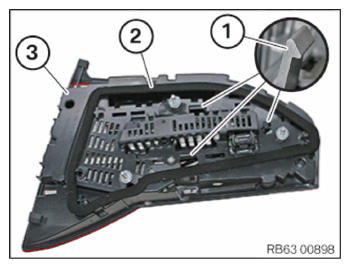

• Check the snap-in lug (1) on the tail light (3) for damage, replace if applicable.
• Replace the seal (2).

  Parts:  Gasket

  Courtesy of BMW OF NORTH AMERICA, INC.

• Build level from 03/19:

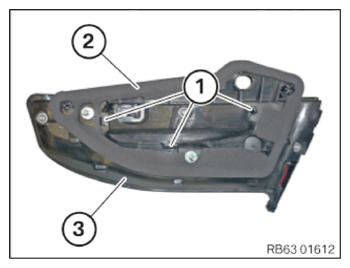

  Check the snap-in lug (1) on the tail light (3) for damage, replace if applicable.

  Replace seal (2).

  Parts:  Gasket

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the tail light in the tailgate in such a way that the retaining lugs (3) snap in.
• Tighten nuts (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Tail light at trunk lid
  Nut M6	Tightening torque	2.6 Nm

• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR TRIM .
• Refer to INSTALLING THE TRUNK LID HANDLE .
• Refer to INSTALLING THE REAR VIEW CAMERA .
• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to INSTALLING THE POWER TAILGATE SWITCH .
• Refer to INSTALLING THE TRIM STRIP TO THE CENTER OF THE TRUNK LID .
