Replacing the LED fan

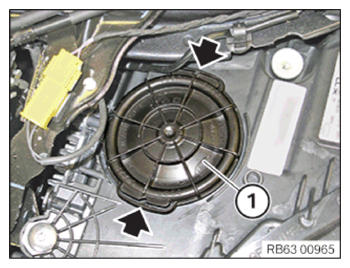

• Release the latch mechanisms (arrows).
• Turn the cover cap (1) towards the left, open and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.

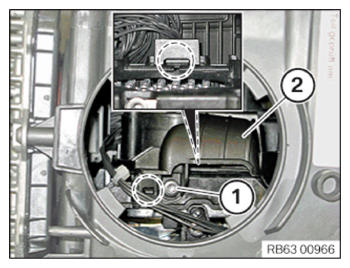

• Release screw (1) the cover (2).
• Feed out the cover (2) from the guides.

  Courtesy of BMW OF NORTH AMERICA, INC.

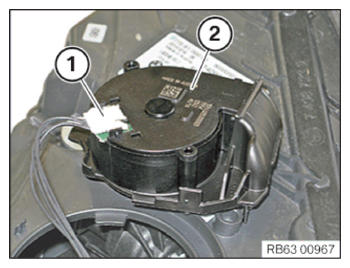

• Unlock and disconnect the connector (1) from the LED fan (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

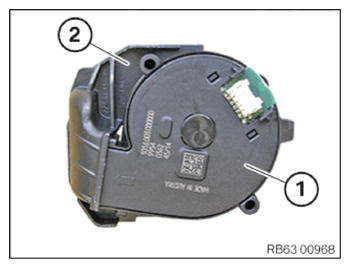

• Turn the fan (1) towards the left, release it from the cover (2) and remove.
• Replace the fan (1).

  Parts:  LED fan

• Position the fan (1) on the cover (2), turn towards the right and engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the connector (1) to the LED fan (2) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed cover (2) into the guides.
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  LED fan
  Screw 40x10	tightening torque	1.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the cover cap (1), turn towards the right and close.
• Check the detents (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING HEADLIGHT .
• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to INSTALLING FRONT SECTION OF THE FRONT WHEEL ARCH COVER (PARTIALLY REMOVED) .
• Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT CENTER .
• Refer to WHEN REPLACING LASER HEADLIGHTS: PROGRAM/ENCODE THE INTEGRATED LASER CONTROL UNIT .
• Refer to ADJUSTING HEADLIGHTS .
