Remove the LED module for the left turn signal lamp

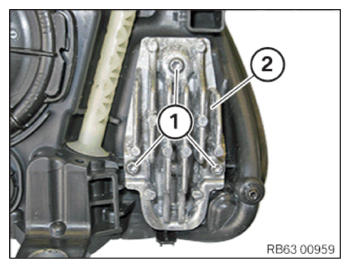

• Loosen screws (1)  .
• Pull LED module (2)  out of headlight.

  Courtesy of BMW OF NORTH AMERICA, INC.

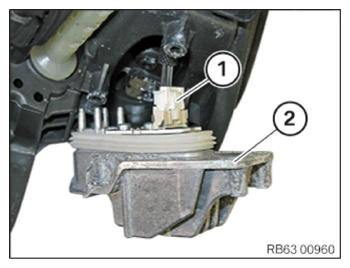

• Unlock connector (1)  at LED module (2)  and disconnect it.

Courtesy of BMW OF NORTH AMERICA, INC.
