Install the LED module for the left turn signal

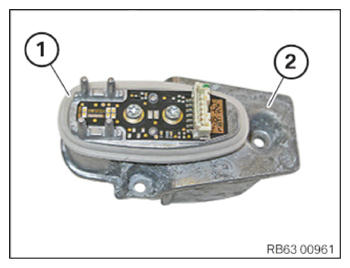

• Check the seal (1) on the LED module (2) for damage and replace as needed.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connector (1) to LED module (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the LED module (2) in the headlight.
• Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

LED module of turn signal
PT-SCREW 40x14	Tightening torque	1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
