Replacing the LED module for the left daytime driving lights

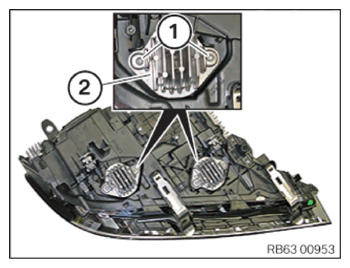

• Loosen screws (1).
• Pull LED module (2) out of headlight.

  Courtesy of BMW OF NORTH AMERICA, INC.

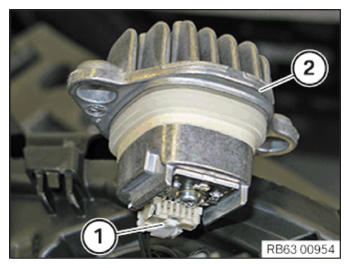

• Unlock connector (1) at LED module (2) and disconnect it.

  Courtesy of BMW OF NORTH AMERICA, INC.

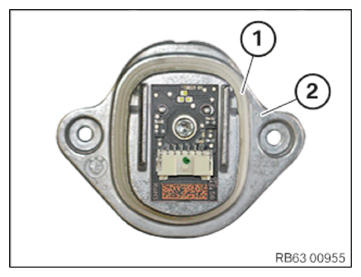

• Check the seal (1) on the LED module (2) for damage and replace as needed.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the LED module for the daytime driving lights.

  Parts:  LED module for the daytime driving lights

• Connect connector (1) to LED module (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the LED module (2) in the headlight.
• Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

LED module of daytime running lights
Screw	tightening torque	1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
