Remove the bottom sensor line for the contactless trunk opening

Preliminary work

• Refer to REMOVING THE LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to ON VERSION WITH COMPACT SPARE WHEEL: REMOVING THE STORAGE TRAY .
• Refer to REMOVING THE LOADING EDGE TRIM .
• Refer to REMOVING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON LEFT .
• Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
• Refer to REMOVING BOTH TAIL LIGHTS FROM THE SIDE PANEL .
• Refer to REMOVING THE TRIM FROM THE REAR BUMPER PANEL .
• Refer to REMOVING BOTH EXHAUST TAILPIPE TRIMS .
• Refer to REMOVING REAR BUMPER PANEL .

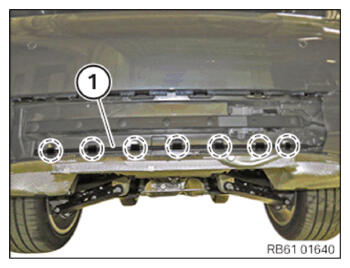

• Release the sensor line at the bottom (1)  from the highlighted clips (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

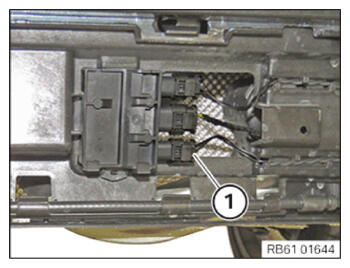

• Unlock and disconnect connector (1)  .
• Feed out the connecting cable from the holder.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unclip the bottom sensor line (1)  from the holder.

Courtesy of BMW OF NORTH AMERICA, INC.
