Remove the left and right fog light brackets
NOTE:
Description is for left component only. Procedure on the right side is identical.

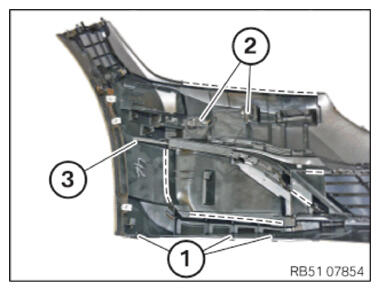

Remove fog lamp holders
- Loosen the expanding rivet (1) .
- Disconnect the plug connectors (2) and dismount the cable harness.
- Release the fog lamp holders (3) from the detents along the dashed line and lift off in an upward direction.
