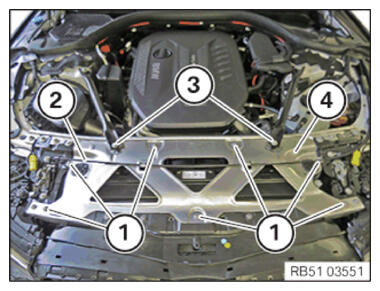

Remove front cross connection
Remove front cross connection
Loosen screws
(1)
.
Detach the cable
(2)
.
Loosen screws
(3)
.
Feed out the front cross connection
(4)
toward the top.
Courtesy of BMW OF NORTH AMERICA, INC.
