Installing trim strip on the left and right
Installing trim strip on the left and right
Install upper trim strip
NOTE:
Description is for left component only. Procedure on the right side is identical.
Check detents for damage.
The detents must not be damaged.

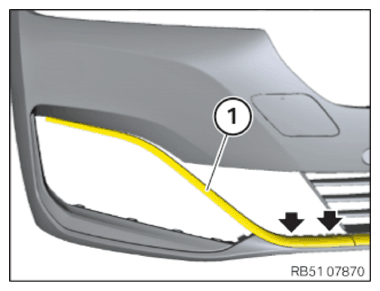

Attach the trim strip
(1)
and snap into the latch mechanisms (arrows).
