Installing the ornamental grille of the bumper panel on the left and right side
Install the ornamental grille on the bumper cover on the side
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Check the detents.
Detents must not be damaged or missing.

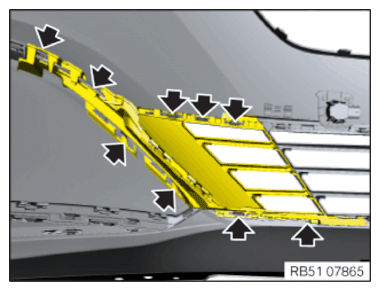

- Install ornamental grille on the side of the bumper cover (1) and engage in detents (arrows).
